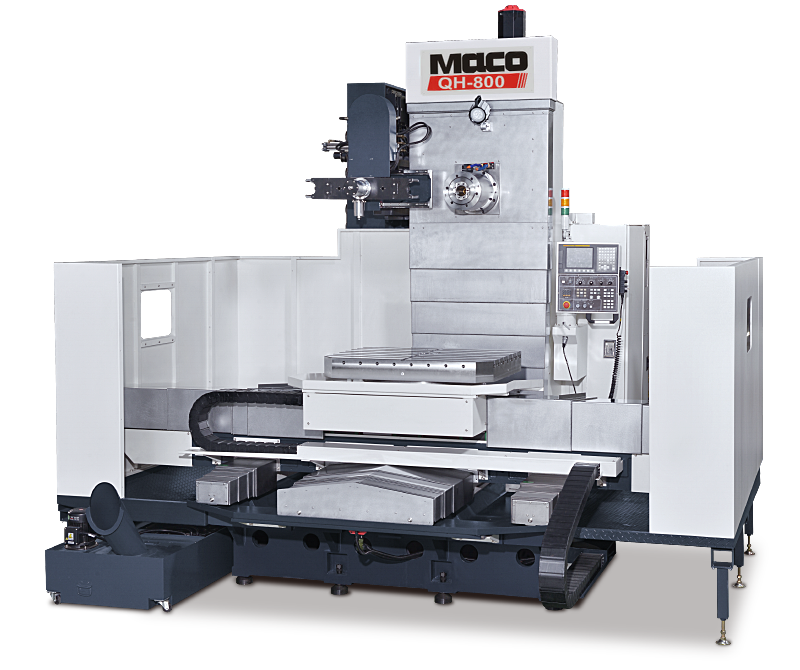

Stable Tool Change T.-T. : 9sec.

Specially designed economical tool clamping mechanism makes it possible to hold tool weight up to 25 kg. Special structure design may effectively avoid tool dropping when the tool arm rotates 180°, while ensuring the accurate squareness when fitting tool into the spindle.

Hydrically operated tool change arm along with the use of linear motion guide for movement ensure no clearance while providing stable tool change motion.

Shortest route tool selection saves considerable time in tool positioning. The magazine provides 40,60 and 120 tools to select.

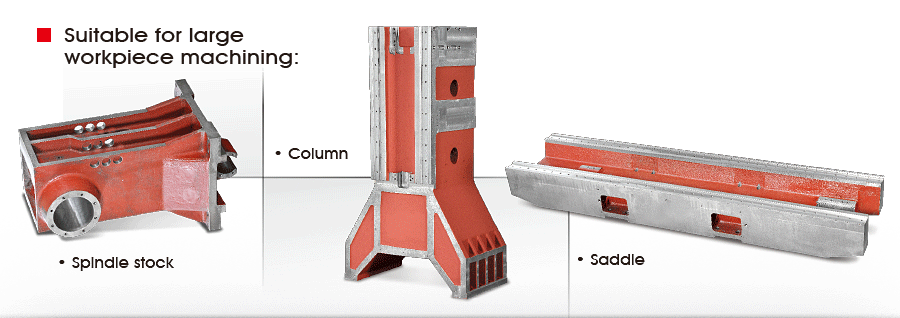

High Precision, High Rigidity
Two-Step Speed Gear-drive Spindle

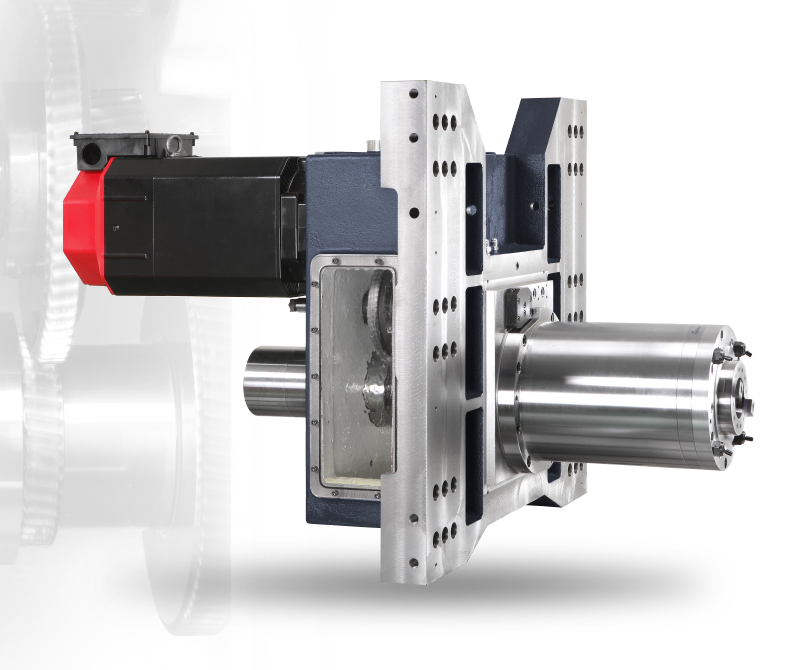

The #50 spindle runs in high precion bearings with high rigidity. Maximum spindle speed reaches 6,000 rpm combiaed with two-step speed change makes the machine suitable for various cutting conditions.

The spindle oil cooler together with coolant circulated quill may effectively control spindle temperature growth at a constant condition. This not only suppresses thermal deformation but also ensure the cutting accuracy of the spindle.

The spindle is driven by an extra powerful motor with 15/18.5 kW (22/26 kW optional) in combination with 2-step gears for speed change, that produces great torque output up to 489 Nm (718 Nm) for heavy cutting.

Long spindle nose design with less interference range makes it suitable for deep hole machining.

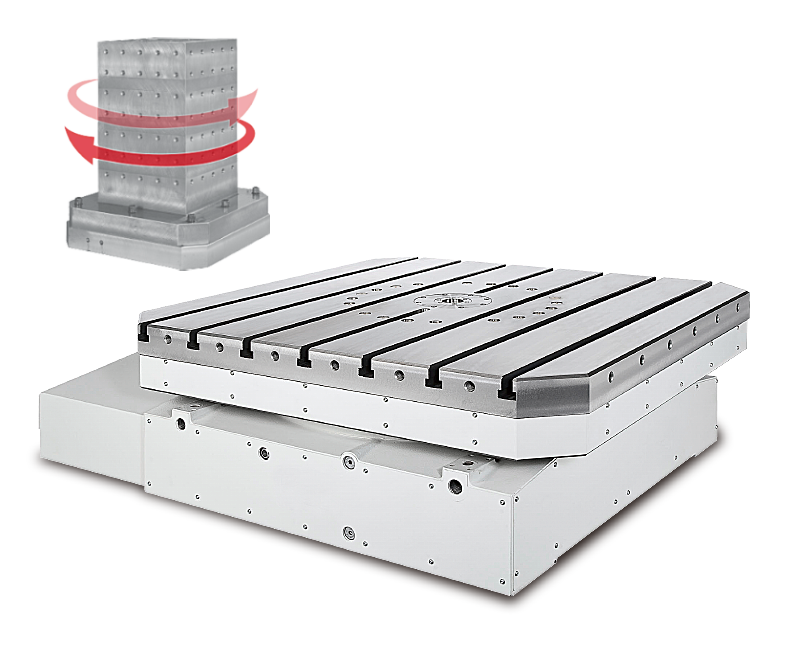

Rotary Table

The high precision, powerful clamping 4th axis contributes to increase machining flexibility and production efficiency.

The 4th axis is driven by a motor and transmitted through worm gear/worm shaft to achieve higher speed and stability.

The table measures 800x800 mm with extra high clamping force up to 5 tons. It resists heavy load up to 3,000 kg and without affection by heavy cutting. The rotary table indexing is made through a big diameter of teeth clutch, and provides 1˚or 5˚ indexing to select for high accuracy and high stability. When using together with a long nose spindle, flexible machining can be achieved.

An optional 0.001˚ rotary table is available for continuous machining, creating ultra high production efficiency.

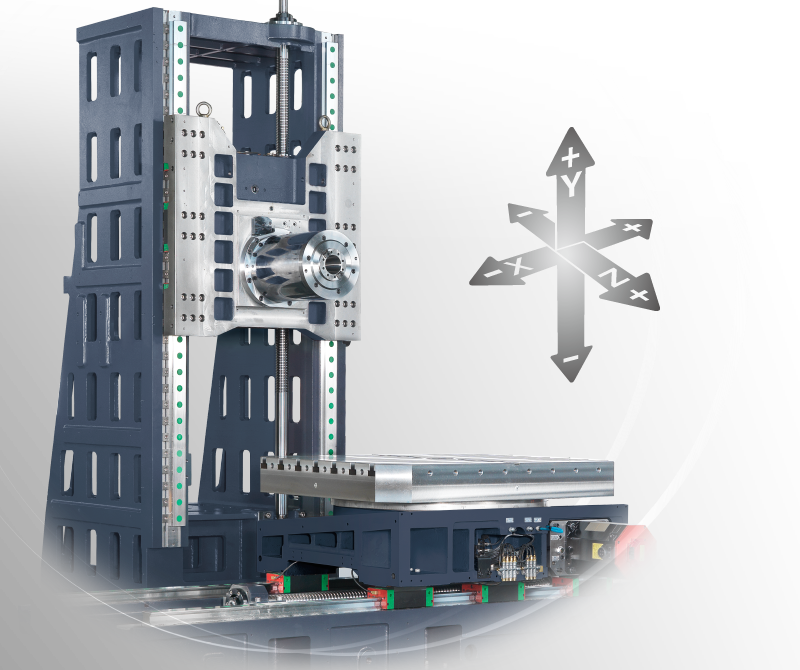

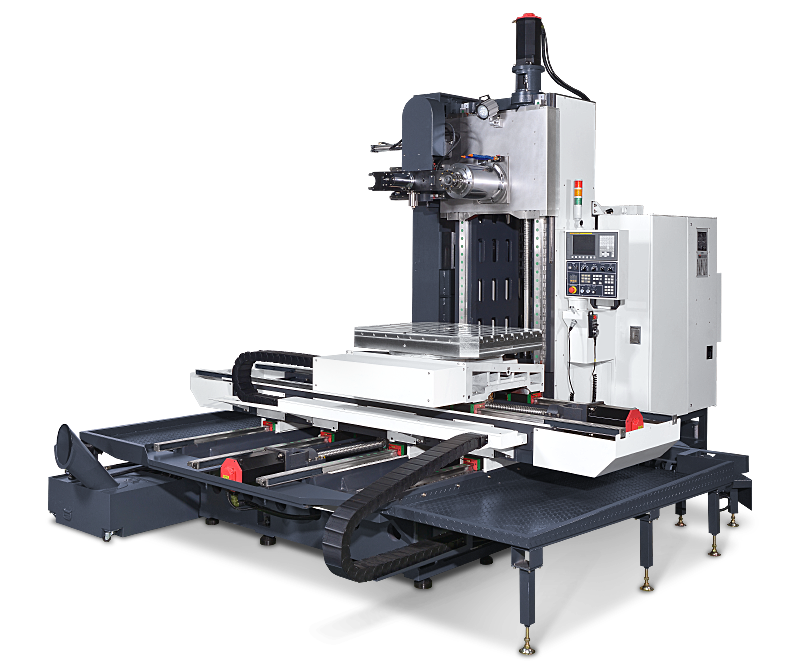

Roller Type Linear Motion Guide

The roller type linear motion guide provides an increase in rigidity especially subjected to a heavy load and also maintains high accuracy of machining.

The linear motion guide features minimum wear and extra long lifespan.

Especially ideal for high speed movement and dramatically reduce the power requirement of machine.
